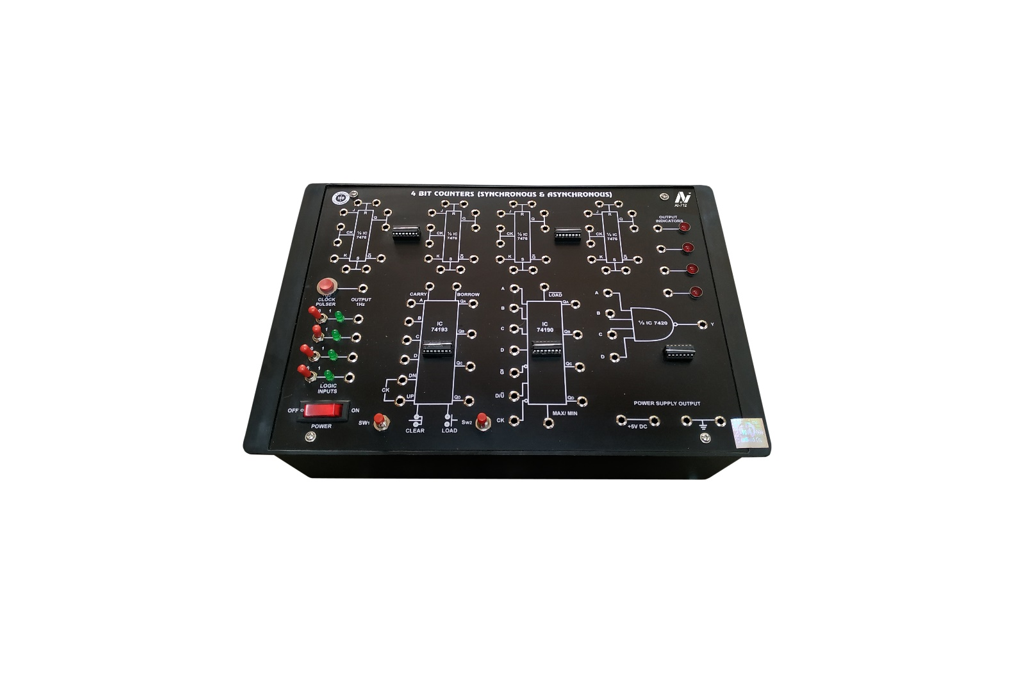

4 Bit Counters (Synchronous & Asynchronous)

Features
  • 4 Bit Counters (Synchronous & Asynchronous) has been designed to study the following Counters:
  • Asynchronous Counters.
  1. Forward Counter.
  2. Reverse Counter.
  3. Modulo Counter.
  • Synchronous Counters.
  1. Forward Counter.
  2. Reverse Counter.
  3. Programmable Counter.
  4. Decade Counter.
  • Ring Counter.
  • Jhonson Counter.
  • Glass Epoxy PCB used as front panel of 300mm x 220mm & mounted on light Weight shock proof plastic cabinet.
  • Circuit diagram printed on Glass Epoxy PCB & all important IC’s & test points are brought out on front panel.



Product Enquiry
SKU: AI-712 Category:

Description

Technical specification
Description Specifications
Product Name 4 Bit Counters (Synchronous & Asynchronous)
Inbuilt Fixed DC Regulated Power Supply
Output Voltages 5VDC
IC’s & Components Provided
IC 7476 (2Nos.), 74193, 74190, 7420
Logic inputs 0 or 1 4 Nos. (Through SPDT Switches)
Output Indicator 4 Nos.
Monoshot Clock 1 Hz.
Power requirement 230 VAC  10%, 50Hz.
Weight 2.0 Kg Approx.
Dimensions (mm) 330( L) x 225(B) x 75(H)
Standard Accessories Power chord, Patch chords & Instruction manual.
