Colpitt Oscillator

Features

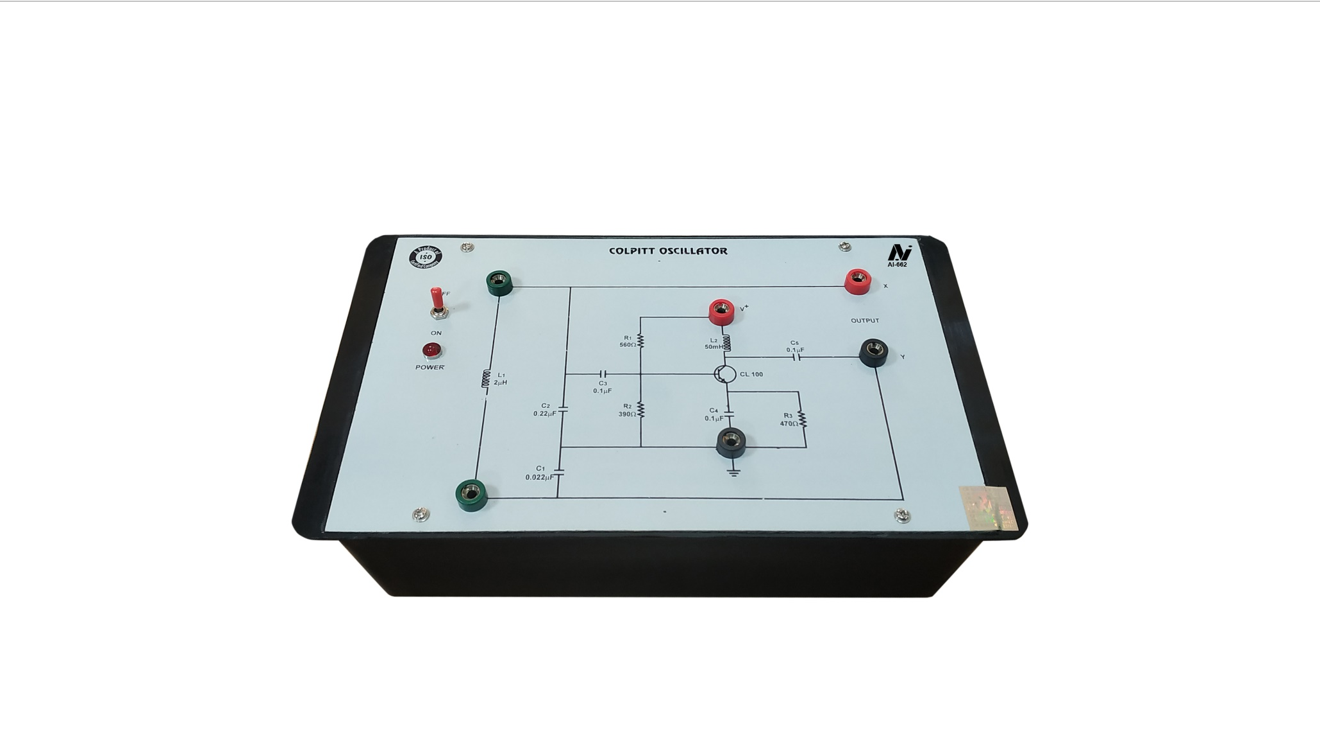

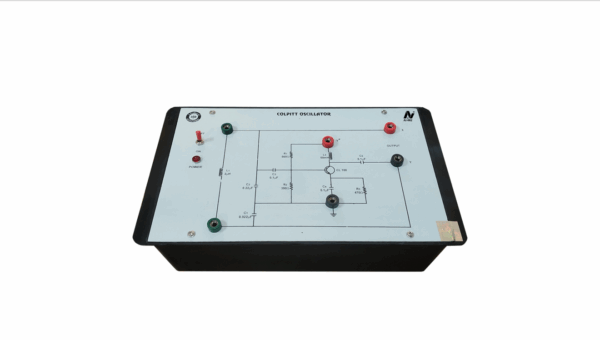

  • Transistorized Colpitt’s Oscillator has been designed to study the Wave Shape & Frequency produced by Colpitt’s Oscillator.
  • High quality Aluminum used as front panel of 270mm x 170mm & mounted on light weight shock proof plastic cabinet.
  • Symbol diagram printed on Aluminum Front Panel & all important test Points are brought out on front panel.



Product Enquiry
SKU: AI-662 Category:

Description

Technical specification
Description Specifications
Product Name Colpitt Oscillator
Inbuilt Fixed DC Regulated Power Supplies
Output Voltages 12VDC
Transistor & Components Provided
Transistors CL – 100
Medium Wave Coil
Resistance
Capacitor
Inductance
Power Requirement 230 VAC 10%, 50Hz.
Weight 1.0 Kg Approx.
Dimensions (mm) 300( L) x 175(B) x 75(H)
Standard Accessories Power chord, Patch chords & Instruction manual.
Optional Accessories Dual Trace Cathode Ray Oscilloscope 20MHz
