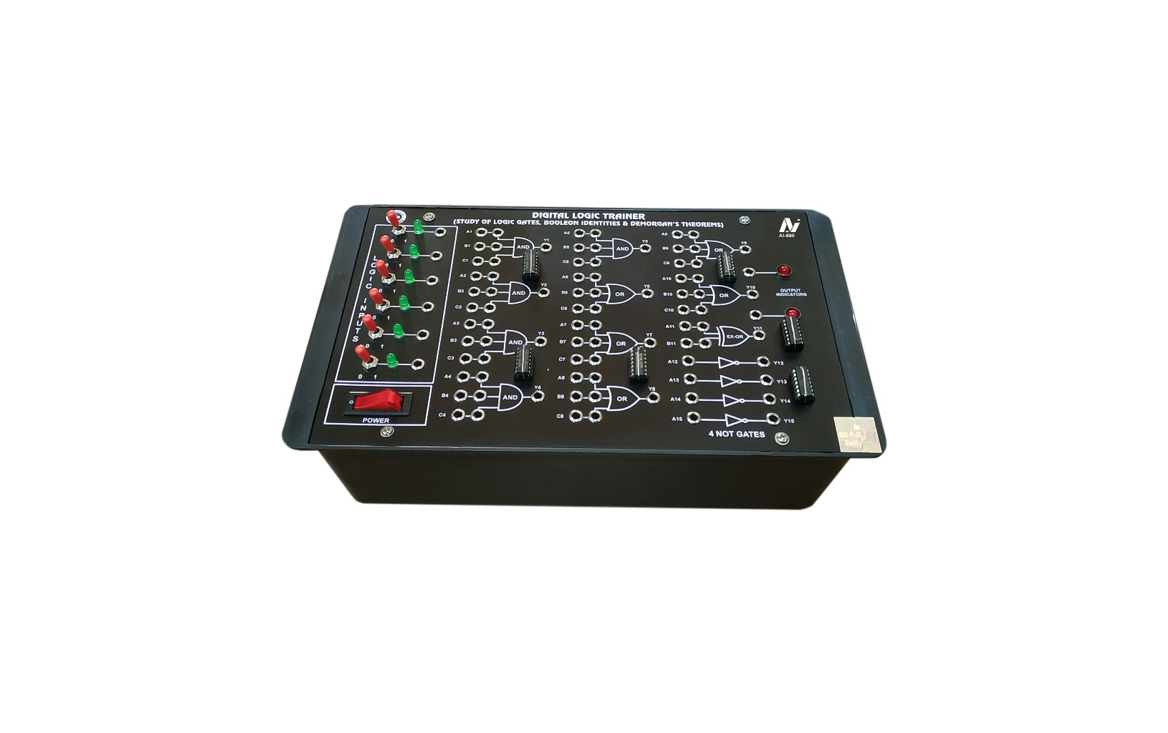

Digital Logic Trainer (Logic Gates, Boolean Identities & DE Morgan’s Theorems)

Features
  • Digital Trainer to verify the following Experiments :
    1. Verification of Basic Logic Gates,
    2. Verification of Boolean Algebra,
    3. Verification of DE Morgan’s Theorems.
  • Glass Epoxy PCB used as front panel of 270mm x 170mm & mounted on light Weight shock proof plastic cabinet.
  • Circuit diagram printed on Glass Epoxy PCB & all important IC’s & test points are brought out on front panel.



Product Enquiry
SKU: AI-690 Category:

Description

Technical specification
Description Specifications
Product Name Digital Logic Trainer (Logic Gates, Boolean Identities & DE Morgan’s Theorems)
Inbuilt Fixed / Variable DC Regulated Power Supply
Output Voltages 5VDC
Gates & Components Provided
3 input AND Gates 5 Nos.
3 input OR Gates 5 Nos.
NOT Gates 4 Nos.
2 input EX-OR Gate 1 Nos.
logic inputs 0 or 1 6 Nos. ( Through SPDT Switches)
Output Indicator 2 Nos.
Power requirement 230 VAC  10%, 50Hz.
Weight 1.0 Kg Approx.
Dimensions (mm) 300( L) x 175(B) x 75(H)
Standard Accessories Power chord, Patch chords & Instruction manual.
