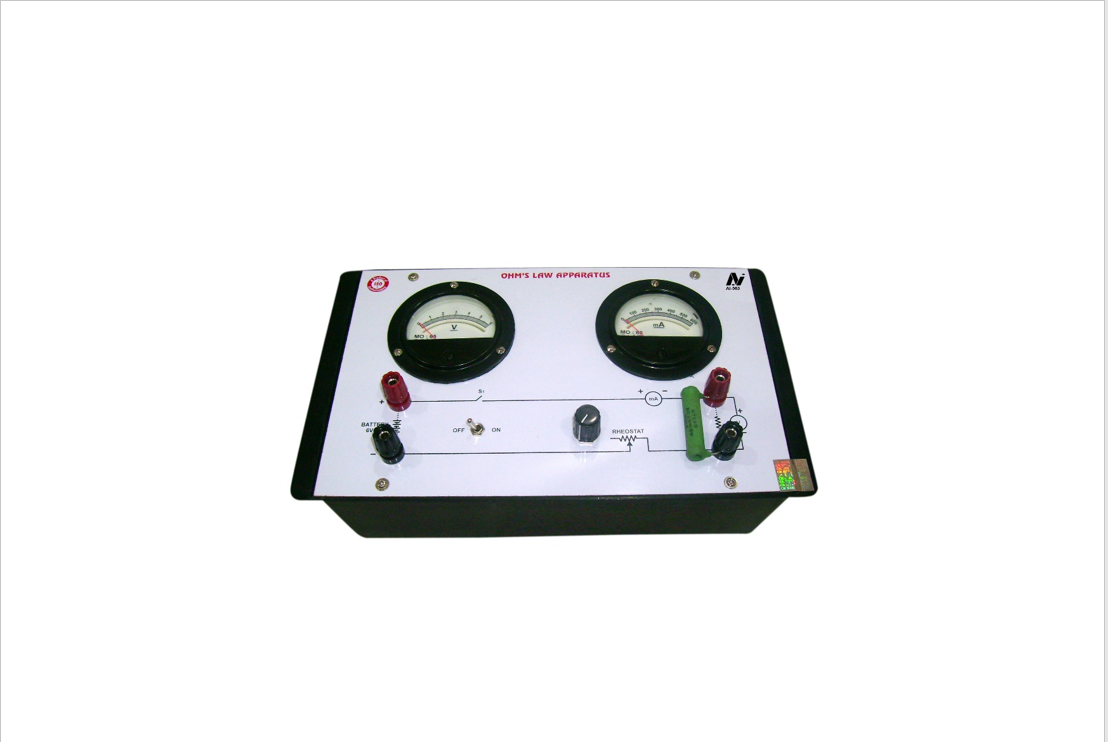

Ohm’s Law Apparatus with 2 Round Meters But without Power Supply

Features
    • Ohm’s law          : V=IR

    : ‘V’ =  Voltage

    :  ‘I’  =  Current

    : ‘R’  = Resistance

  • High quality Bakelite used as front panel of 270mm x 170mm & mounted on light weight shock proof plastic cabinet.
  • Symbol diagram printed on Bakelite Front Panel & all important test Points are brought out on front panel.





Product Enquiry
SKU: AI-563 Category:

Description

Technical specification
Description Specifications
Product Name Ohm’s Law Apparatus with 2 Round Meters But without Power Supply
On Board Analog Moving Coil Meters (65 mm Round )
Voltmeter 0-6VDC

0-600mA
Components Provided
Resistance 10 ohm / 10 Watt
Potentiometer 1 Nos.
Weight 1.0Kg Approx.
Dimensions (mm) 300( L) x 175(B) x 75(H)
Standard Accessories Instruction manual.
Optional Accessories Battery : 6VDC
